Coating System for Pipelines--Inner Layer
1.Quick Details
|
Product Name |
T100 PE ANTICORROSION INNER TAPE |
||
|
Thickness |
7mil-59mil (0.18mm-1.5mm) |
||
|
Width |
2 ” - 32” (50mm-800mm) |
||
|
Length |
100’-800’ (30m-244m) |
||
|
Material |
Polyethylene Film+Butyl Rubber Adhesive |
||
|
Color |
Black/White/Yellow |
||
|
Packaging |
Release Paper+ Carton/Plastic seal/Pallet |
||
|
Delivery |
＜5000㎡ |
5000-30000㎡ |
＞30000㎡ |
|
3 days |
7-15 days |
To be negotiated |
|
2. Product Description

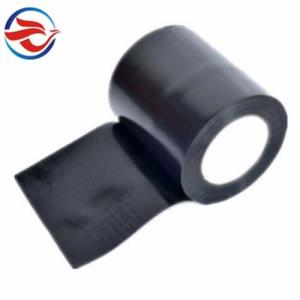

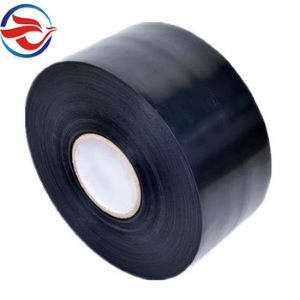

T100 PE Inner anti-corrosion tape is a two ply tape with LDPE carrier film and butyl rubber adhesive on one side. It is cold applied tape coating system for corrosion protection of Water, Oil and Gas Pipelines. The T100 is engineered to assure a high bond to the primed surface with excellent conformability characteristics. It shall be applied after primer and before outer mechanical protection tape.
3. Application
(1) Petroleum and Natural Gas Pipelines
(2) Over the Ditch Line Coatings
(3) Girth Weld Coating
(4) Plant Applied Line Coatings
(5) External Anti-corrosion of Metal Pipes
(6) Chemical, Electric Power Pipeline Projects and Facilities
(7) Water supply Pipeline, UrbanGas Pipeline Network
(8) Reconditioning/Rehabilitation Coating System
4.Specification
|
Physical Properties |
Test Method |
Typical Value |
|
|
English |
Metric |
||
|
Backing color |
- |
Black |
Black |
|
Tensile strength |
ASTM D 1000 |
51 lbs/in |
90 N/cm |
|
Elongation |
ASTM D 1000 |
280% |
280% |
|
Peel adhesion to primed steel pipe |
ASTM D 1000 |
311oz/in |
34 N/cm |
|
Cathodic Disbondment |
ASTM G 8 |
0.252 in radius |
6.4mm |
|
Dielectric Strength |
ASTM D 149 |
30.0 KV |
30.0 KV |
|
Volume Resistivity |
ASTM D 257 |
2.2×1012 ohm.cm |
2.2×1012 ohm.cm |
|
Water Absorptivity |
ASTM D 570 |
≤0.06% |
≤0.06% |
|
Water Vapor Transmissioin Rate |
ASTM F 1249 |
0. 083 g/100sq in/24h |
0.13 g/ m2/24h |
|
Application Temperature |
- |
14ºF to 140 ºF |
-10ºC to +60 ºC |
5. Features
• Excellent adhesion to pipe and self.
• Cold applied.
• Can be applied over a wide temperature range.
• Long term corrosion protection.
• Compatible with common pipe coatings.
• Application by hand or machine.
• Complies with ASTM D1000,EN12068,DIN30672 standards.
6. Packaging and Shipping
